YAMAHA ATV FAN OVERRIDE
Looking to turn your radiator fan whenever you want? Well DZ has solved this issue with a plug n play fan override harness. You will now have the ability to turn on the fan motor whenever you wish or to be used in stock form. Installation is simple, this harness uses OEM connectors and allows you to easily plug into the factory fan connector and 12v acc connector to excite the relay. No more splicing or hacking into the factory harness to make your fan come on.

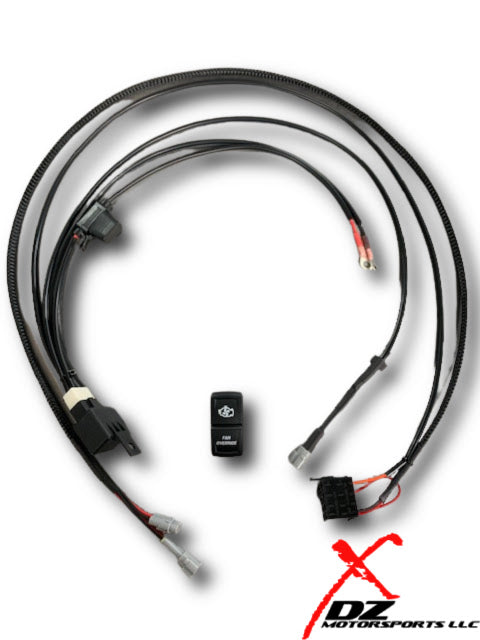

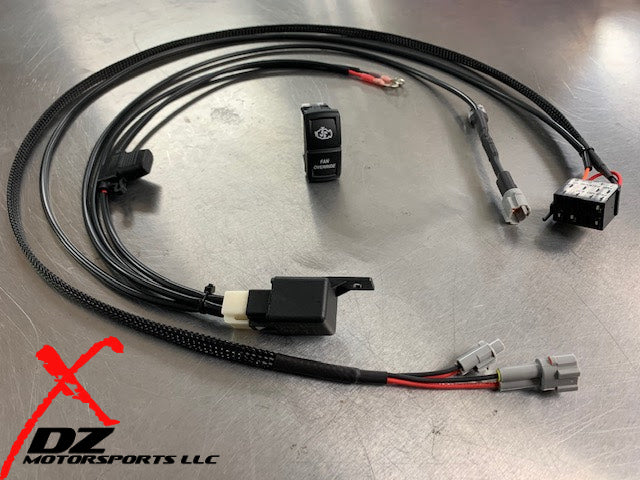

This harness comes complete with everything needed to install on your Yamaha ATV. Harness includes a "Y" adapter to add additional acc in the future. All wires are soldered at connector terminals and wrapped in heat resistant braided wire loom. All OEM connectors are weather proof sealed along with the relay assy. Kit also includes a custom etched Carling rocker switch in blue leds with prewired switch socket.
Kit does not include instructions. Installation is very simple:
Ring terminals to battery +& -
Gray connectors w/ red & black wires plug in-between 12v socket
Gray connectors wrapped in heat shrink install in-between the factor fan connections.
Mount switch in a suitable location.
